LDX

Load Index Register X from Memory

Data Transfer

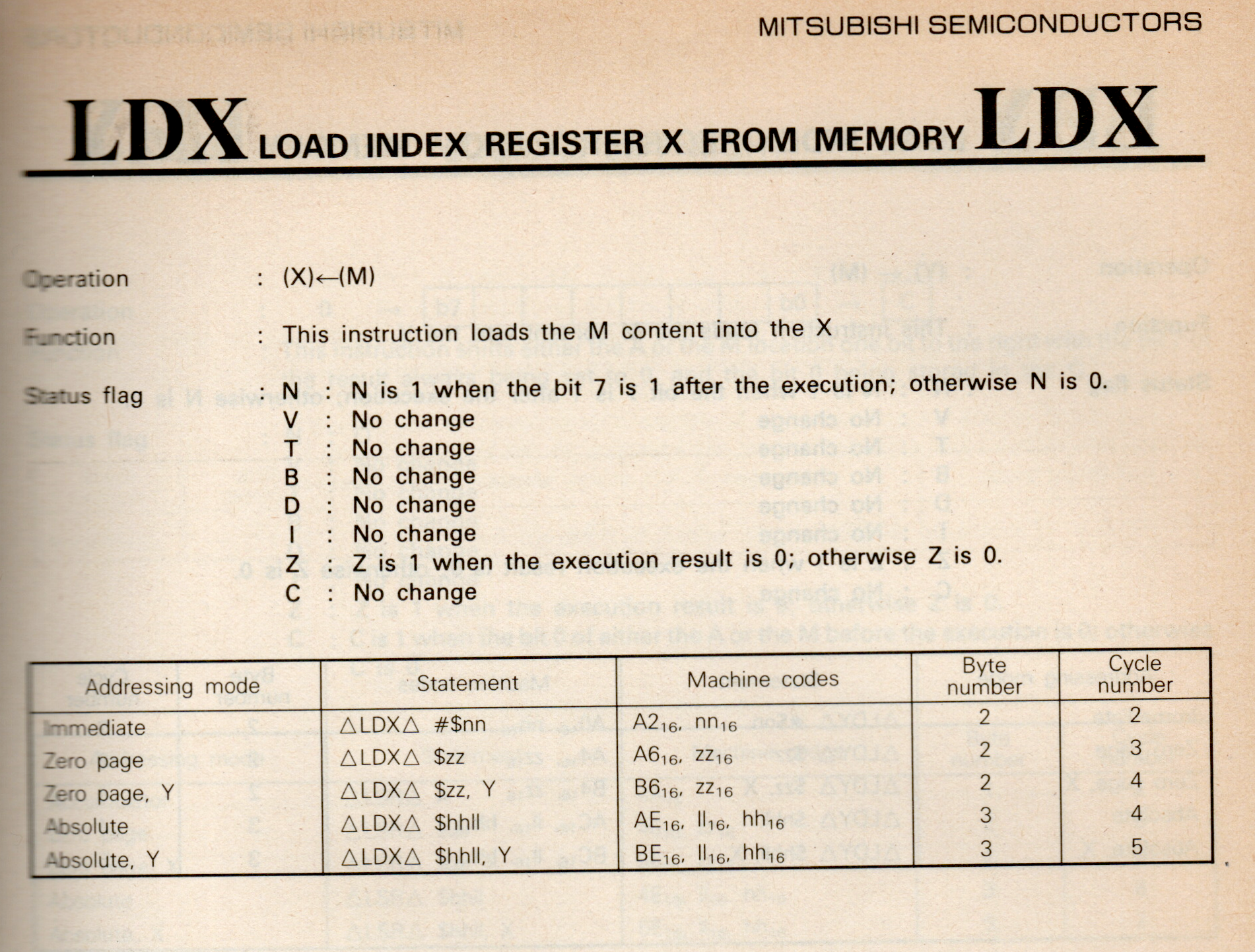

LDX instruction reference scan

Scanned from original Mitsubishi M50734 Software Manual. Click to enlarge.
