Home › Instructions › EOR

Instructions

← All Instructions

EOR

Exclusive OR Memory with Accumulator

Logic

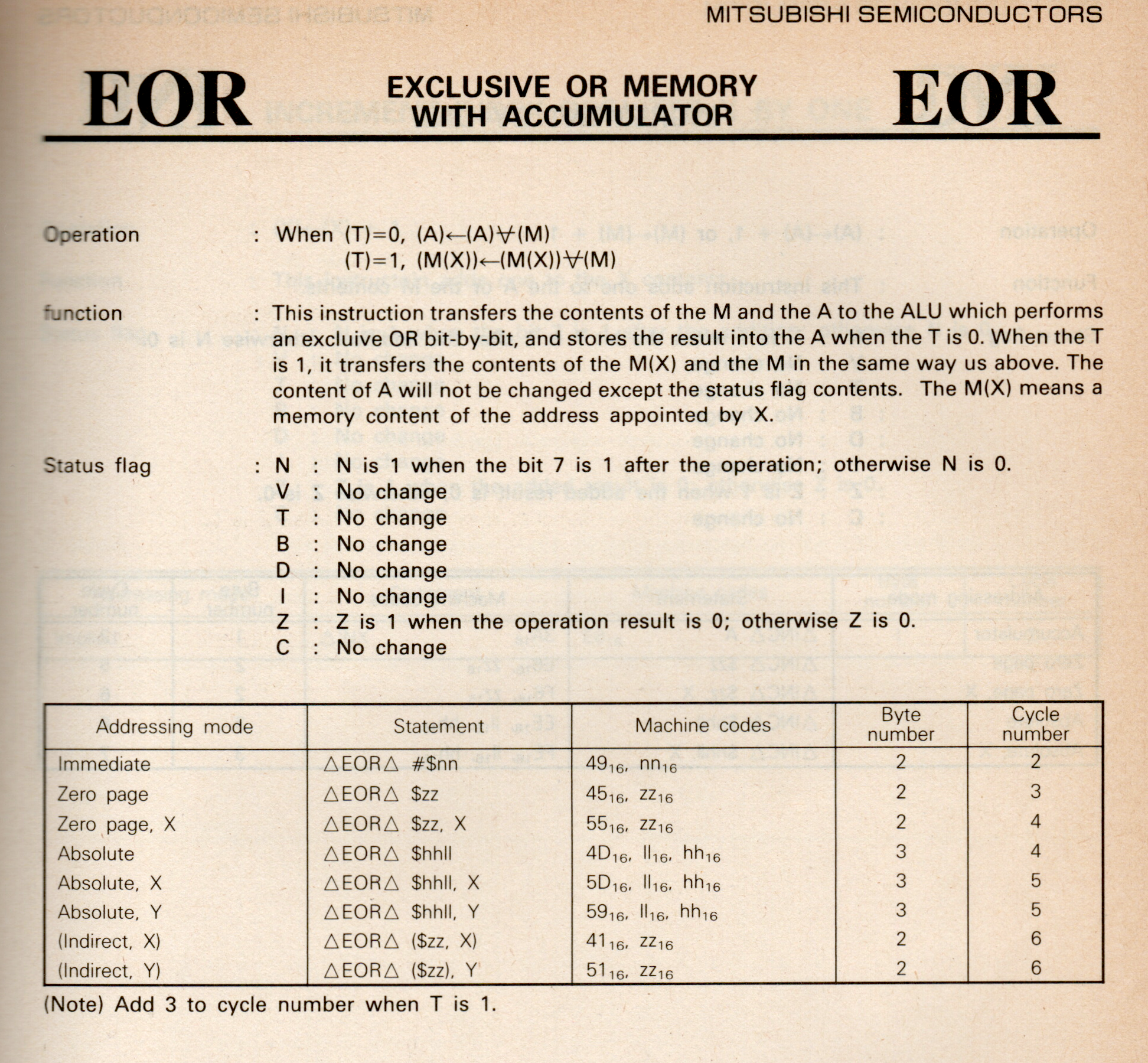

EOR instruction reference scan

Scanned from original Mitsubishi M50734 Software Manual. Click to enlarge.
