BRK

Force Break

Jump & Call

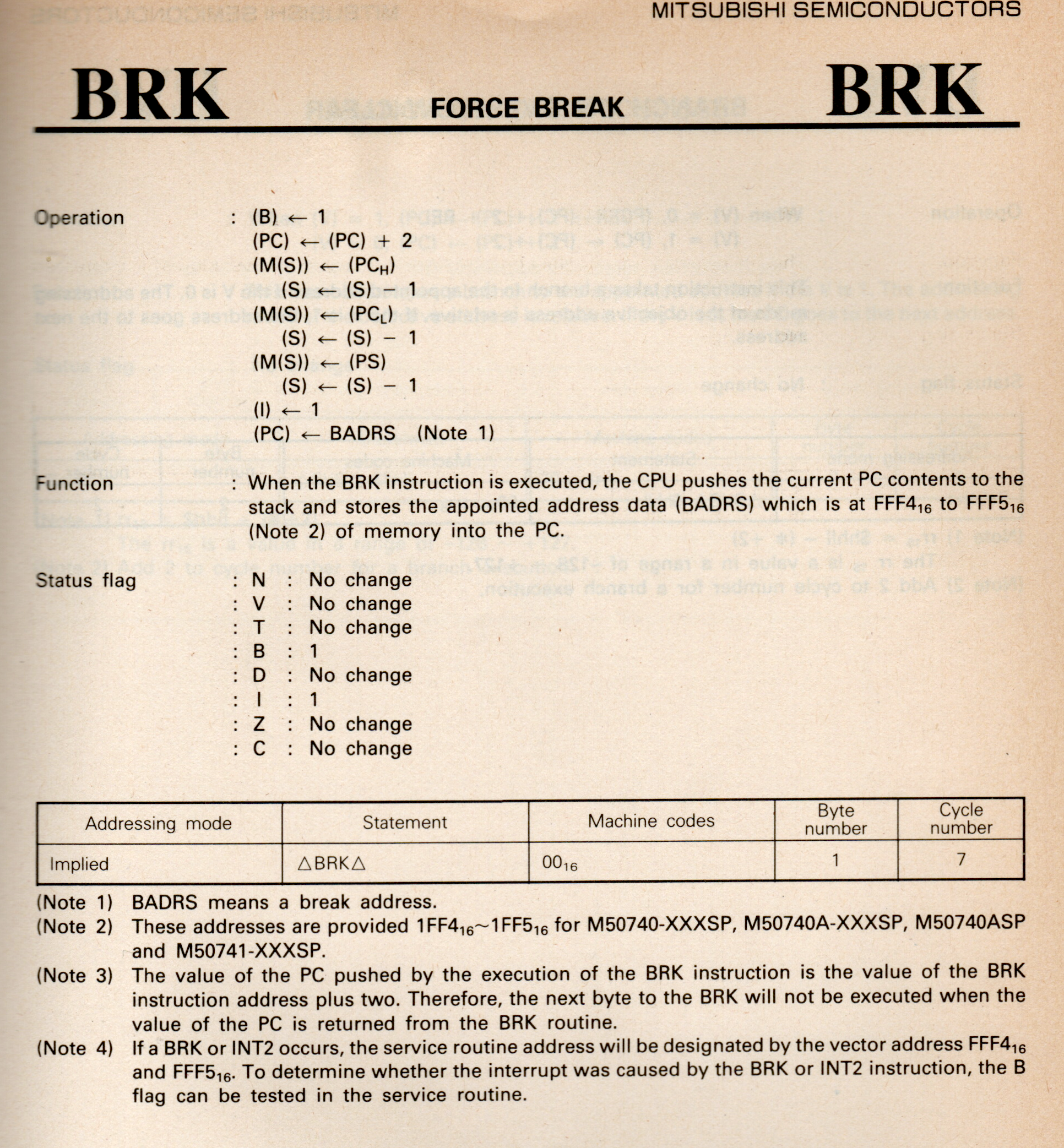

BRK instruction reference scan

Scanned from original Mitsubishi M50734 Software Manual. Click to enlarge.
